AZURA UVD 2.1L detector
Reference: ADA01XA
The AZURA UV/VIS Detector UVD 2.1L is a competitively priced HPLC spectrophotometer for routine HPLC applications including fast LC methods. Besides offering excellent technical specifications, this robust detector features a highly flexible and compact design. The UVD 2.
Your price
on inquiry
Availability: ask us
Product description
Product description

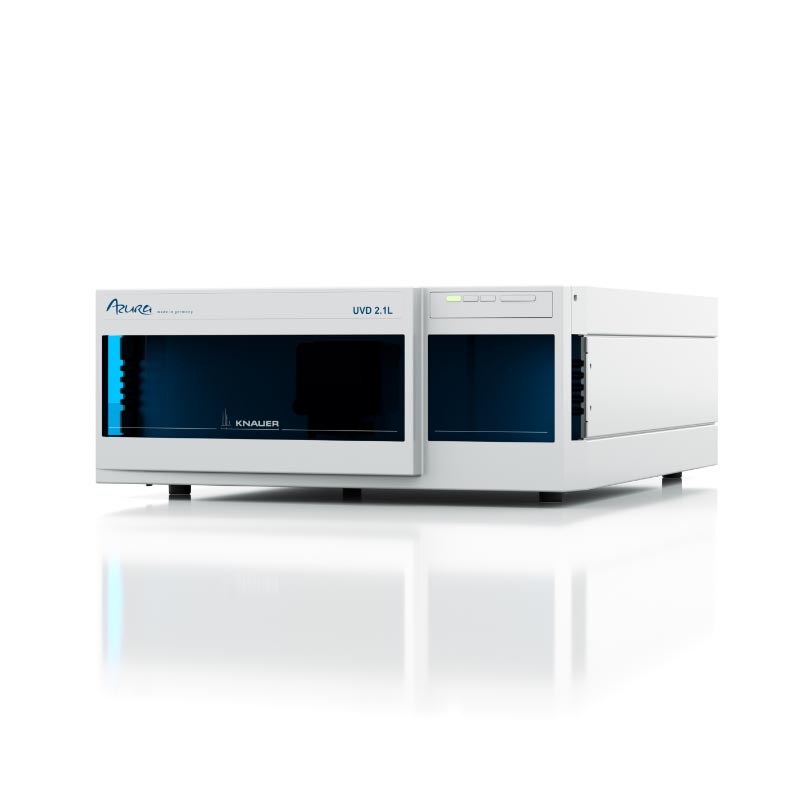

The AZURA UV/VIS Detector UVD 2.1L is a competitively priced HPLC spectrophotometer for routine HPLC applications including fast LC methods. Besides offering excellent technical specifications, this robust detector features a highly flexible and compact design. The UVD 2.1L comes with an installed deuterium lamp which covers a wavelength range from 190 to 750 nm.

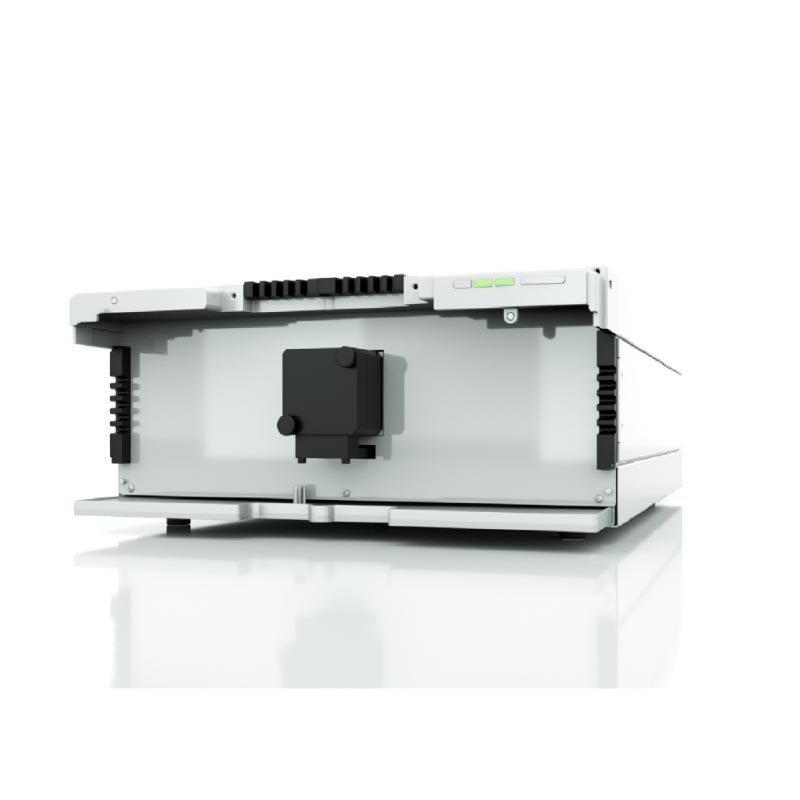

This detector can be controlled with OpenLab® EZChrom, ChromGate®, and ClarityChrom® software, as well as from an optional touch display (stand-alone operation), via LAN or through analog input/output; allowing it to be integrated into almost any LC system. Due to a smart design the flow cell is easily accessible and can be changed very quickly. You can choose between a wide range of flow cells for analytical or preparative LC applications with flow rates from 10μl/min up to 10l/min.
Parameters
Parameters
| Brand: | Azura |
| Category: | Laboratory instruments and accessories / Chromatography / Liquid chromatographs |
| Detector type | Variable single wavelength UV/VIS detector |
| Detection channels | 1 |
| Light source | Deuterium (D2) lamp with integrated GLP chip |
| Wavelength range | 190 – 750nm |
| Spectral bandwidth | 11nm at Hα line (FWHM) |
| Wavelength accuracy | ±2.5nm |
| Wavelength precision | 0.3nm (ASTM E275–93) |
| Noise | ±1.5 × 10–5 AU at 254nm (ASTM E1657–98) |
| Drift | 3.0 × 10–4 AU/h at 254nm (ASTM E1657–98) |
| Linearity | >2.0 AU at 270nm (ASTM E1657–98)¨ |
| Maximum data rate | 50Hz (LAN) |
| 20Hz (Analog) | |
| Analog outputs | 1 × 0 – 5V scalable, 20 bit, offset adjustable |
| Operation temperature | 4 – 40°C |
| Operation humidity | 90% RH (non-condensing) |
| Power supply | 100 to 240V, 50 to 60 Hz, 75W |
| Dimensions (W x H x D) | 361 × 158 × 523 mm |
| Weight | 5.9 kg |
Note: Flow cells are not included and must be ordered separatel
