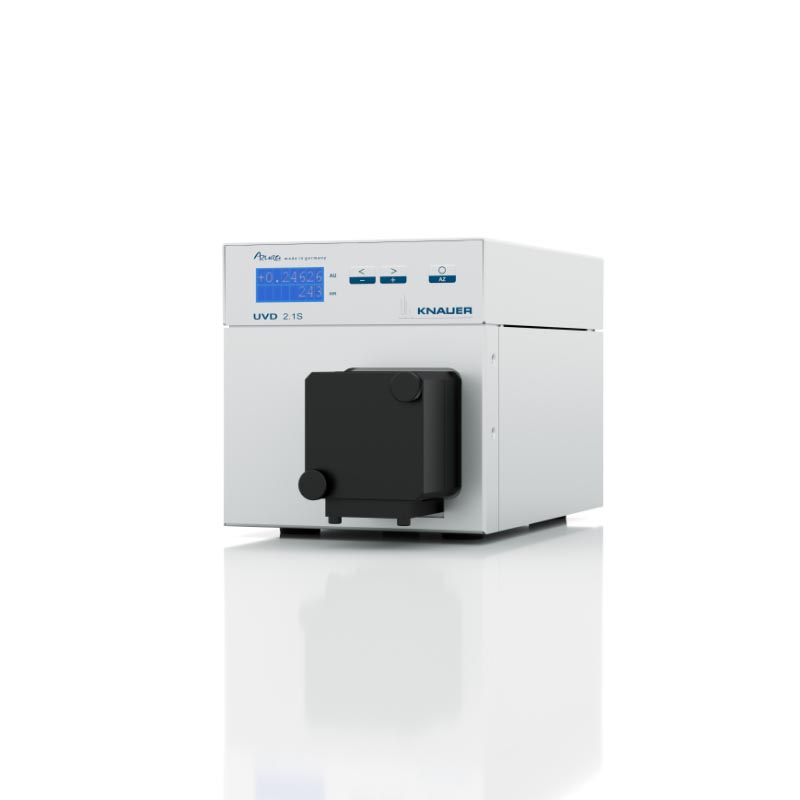

AZURA UVD 2.1S Detector
Reference: ADA00
The AZURA UVD 2.1S is a highly competitive single variable wavelength UV detector for HPLC. It offers excellent technical specifications for routine laboratory work. With its small footprint, it is one of the smallest detectors for HPLC on the market. The UVD 2.1S comes in the novel small AZURA housing.
Your price
on inquiry
Availability: ask us
Product description
Product description
The AZURA UVD 2.1S is a highly competitive single variable wavelength UV detector for HPLC. It offers excellent technical specifications for routine laboratory work. With its small footprint, it is one of the smallest detectors for HPLC on the market.
The UVD 2.1S comes in the novel small AZURA housing. The installed deuterium lamp covers a wavelength range from 190 to 500 nm. The UV detector can be controlled with OpenLab EZChrom Edition®, ChromGate®, PurityChrom Bio and ClarityChrom® software, as well as from the front panel (stand-alone operation), via LAN, via RS-232, or through analog input/output; allowing it to be integrated into almost any LC system. Due to a smart design the flow cell is easily accessible and can be changed very quickly. You can choose between a wide range of flow cells for analytical or preparative LC applications with flow rates from 10μl/min up to 10l/min.
Parameters
Parameters
| Brand: | Azura |
| Category: | Laboratory instruments and accessories / Chromatography / Liquid chromatographs |
| Detector type | Small variable single wavelength UV detector |
| Detection channels | 1 |
| Light source | Deuterium (D2) lamp with integrated GLP chip |
| Wavelength range | 190 to 500 nm |
| Spectral bandwidth | 13nm at Hα line (FWHM) |
| Wavelength accuracy | ±3nm |
| Wavelength precision | 0.7nm (ASTM E275–93) |
| Noise | ±2.0 × 10–5 AU at 254nm (ASTM E1657–98 |
| Drift | 3.0 × 10–4 AU/h at 254nm (ASTM E1657–98) |
| Linearity | >2.0 AU at 270nm (ASTM E1657–98) |
| Maximum data rate | 50Hz (LAN) |
| 20Hz (analogě) | |
| 10Hz (RS-232) | |
| Analog outputs | 1 x ± 2.5V scalable, 20 bit |
| Operation temperature | 4 to 40°C |
| Operation humidity | <90% RH (non-condensing) |
| Dimensions (W x H x D) | 121 × 129 × 187mm |
| Weight | 1.5kg |
