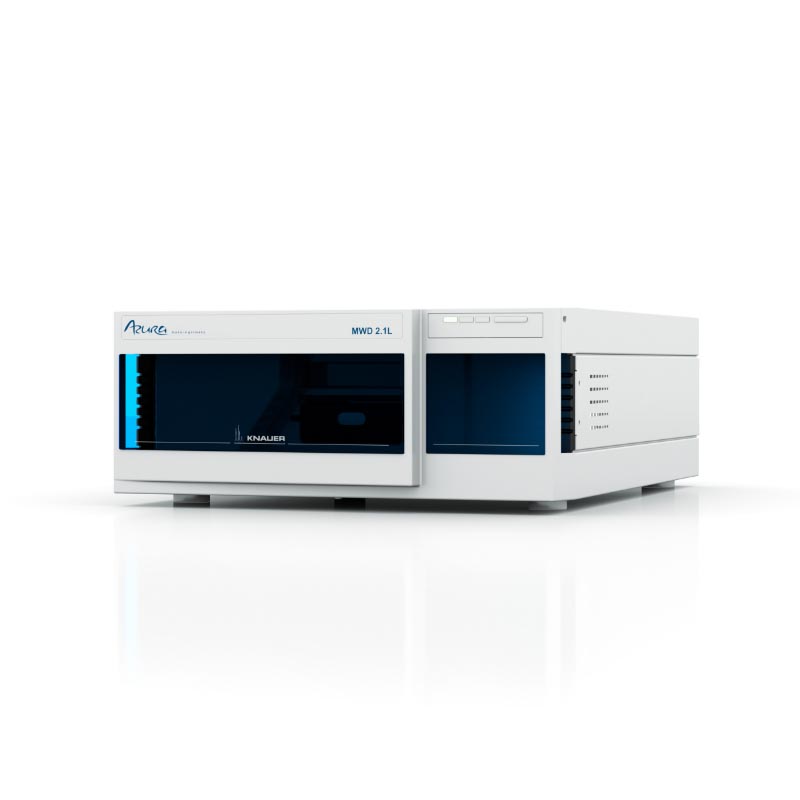

AZURA MWD 2.1L Multiwavelength detector

The AZURA MWD 2.1L is an 8 channel, sensitive multiwavelength detector combining high performance with easy handling at an affordable price.

Your price
on inquiry
Availability: ask us
Product description

Product description

The AZURA MWD 2.1L is an 8 channel, sensitive multiwavelength detector combining high performance with easy handling at an affordable price.

A wide range of easily exchangeable cartridge flow cells make this device the right choice for fast, standard analytical, semi-preparative and preparative separations with bio-inert or stainless steel wetted parts. State-of-the-art total reflection flow cells, LightGuide technology, are available for this device providing maximum light throughput (due to total internal reflection) with minimal peak dispersion (due to the small cell volume) to guarantee an optimized S/N ratio.

An optional fiber optics adapter offers the possibility to separate the flow cell spatially from the device and thus provides enhanced security for hazardous, explosive or toxic work processes, as well as protecting the device from leakages at high flow rates. The newly developed optical unit and intelligent temperature management ensure for maximum sensitivity combined with minimal baseline drift.

Furthermore, easy frontal access and improved safety features enable effortless lamp replacement. This eases maintenance and guarantees short downtimes.

This device is also easily upgradable to a diode array detector. The MWD 2.1L comes installed with a deuterium lamp which covers a wavelength range from 190 to 700 nm. This detector can be controlled with OpenLab® EZChrom, ClarityChrom® and PurityChrom Bio software, as well as from an optional touch display (stand-alone operation), via LAN or through analog input/output, allowing it to be integrated into almost any LC system.

Parameters

Parameters

Brand: Azura
Category: Laboratory instruments and accessories / Chromatography / Liquid chromatographs
Detection channels 8 (digital)
4 (analog)
Light source Deuterium (D2) lamp with integrated GLP chip
Wavelength range 190 to 700nm
Spectral bandwidth < 8 nm at Hα line (FWHM)*
Wavelength accuracy ±1nm
Wavelength precision 0.1nm
Noise ±5 µAU at 254nm
Drift 400 µAU/h at 254nm
Linearity >1.6 AU at 274nm
Maximum data rate 100Hz (LAN)
12.5Hz (analog)
Analog outputs 4× 0 to 5V, 16 bit
Operation temperature 4 to 40°C
Operation humidity <90% RH (non-condensing)
Power supply 100 to 240V, 50 to 60Hz, 75W
Dimensions (W x H x D) 361 × 158 × 523 mm
Weight 12.2kg

*Note: digital bandwidth 1 – 32 n
