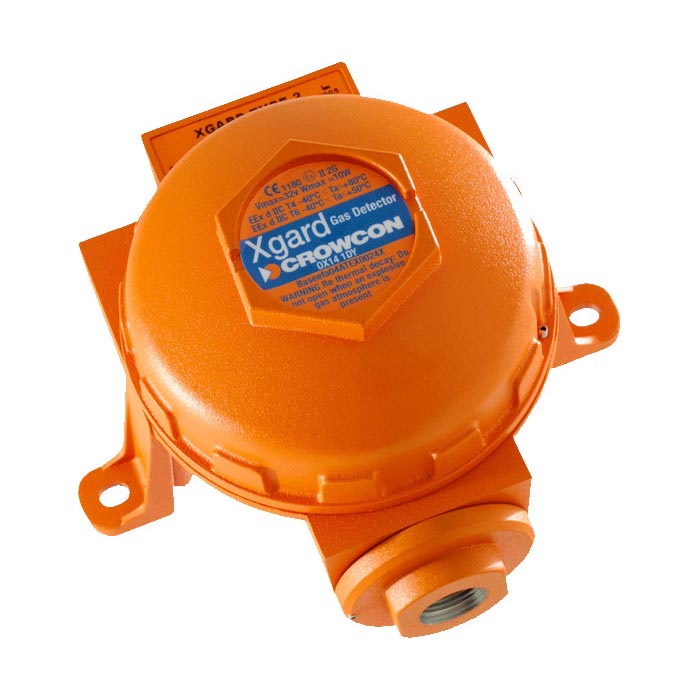

Xgard Type 5 for vynylchloride (VCM), 0-100% LEL (VQ25), Aluminium body, M20, ATEX
Reference: XG5-A1-01-FO
Xgard Type 5 is flameproof flammable gas detector with 4 – 20 mA output. Poison resistant pelistors are used to detect flammable gases.
Your price
on inquiry
Availability: ask us
Product description
Product description
Xgard Type 5
is flameproof flammable gas detector with 4 – 20 mA output. Poison resistant pelistors are used to detect flammable gases.
Main features
- low cost of ownership
- easy installation and maintenance, simple replacement of sensors
- flexible installation options
- rugged and reliable

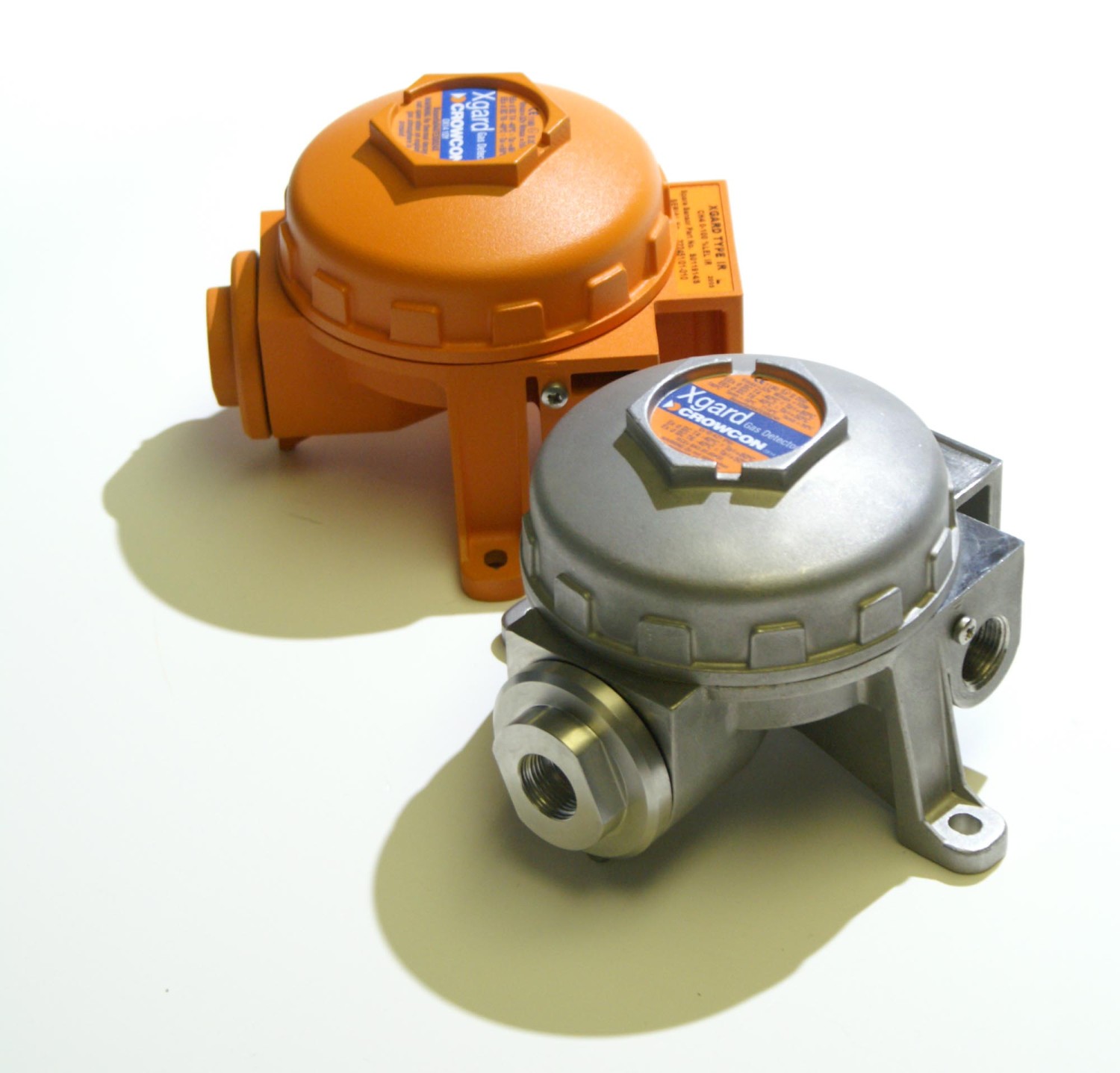

- made from highly durable aluminium with a though polyester coating, spray deflectors and weatherproof caps are available for use in areas subject to regular wash-downs, or offshore environments
- ATEX certificate
Czech datasheet in pdf for XGARD detector can be found at this link https://www.chromservis.eu/…as-detection.
Parameters
Parameters
| Brand: | XGARD |
| Category: | Measurement and control / Gas measurement / Fixed detectors |
Technical specifications
| Dimensions | 156 mm x 166 mm x 111 mm |
| Weight | 1 kg |
| Ingress protection | IP65, IP66 with weatherproof cap |
| Cable entries | 1 x M20 |
| Terminations | 0.5 – 2.5 mm2 csa (20–13 awg) |
| Sensor type | pellistor |
| Operating temperature | –40 až 55 °C |
| Humidity | 0–99% RH |
| Zero drift | < 2% FSD/month |
| Response time | T90 < 15 s |
| Operating voltage | 10 – 30 V |
| Power requirements | 50 mA/24 V |
| Electrical output | 3-wire 4–20 mA |
| Approvals ATEX | Ex II G, EExd IIC T6 |
Available gases and ranges*
| Acetylene | 0–100% LEL |
| Ammonia | 0–25% LEL |
| Butane | 0–100% LEL |
| Ethane | 0–100% LEL |
| Ethylene | 0–100% LEL |
| Hydrogen | 0–100% LEL |
| LPG | 0–100% LEL |
| Methane | 0–100% LEL |
| Pentane | 0–100% LEL |
| Petrol | 0–100% LEL |
| Propane | 0–100% LEL |
| Vinyl Chloride | 0–100% LEL |
*One detector is for one gas and one range, therefore it's needed to refer to the relevant part number in case of your interest **Other sensors and ranges maybe available, please contact Chromservis s.r.o.
Use
| Gas detected | Vinylchlorid |
Operating conditions
| ATEX | ATEX |
| Analogue output | 4-20 mA |
| Detection/Operation principle | Pellistor |
