WatchGas SST5 - LEL NDIR/O2/CO/H2S/NH3 (No H2 or C2H2)

Novelty

Reference: SST5-X3OMH-NH3-Y

Personal Five Gas Monitor The SST5 is a compact and lightweight personal gas monitor designed for the simultaneous detection of up to five gases. Combining advanced sensor technology with a rugged housing and high ingress protection, it is suitable for demanding industrial, energy, petrochemical and marine applications.

more information

Your price

on inquiry

Availability: ask us

Product description

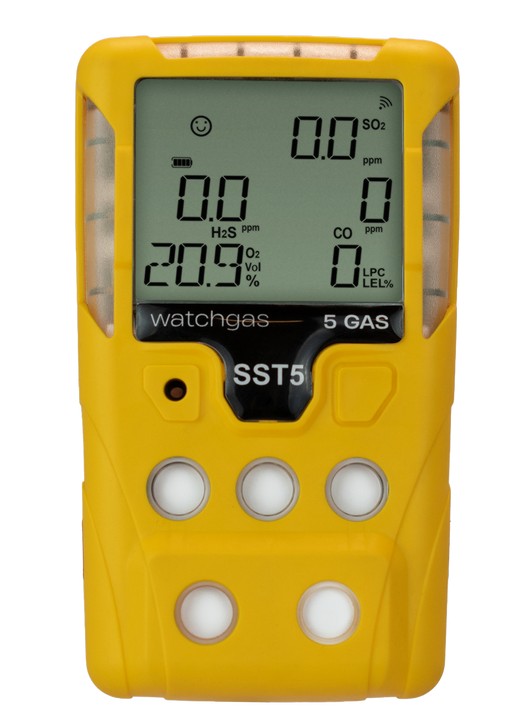

Personal Five Gas Monitor

The SST5 is a compact and lightweight personal gas monitor designed for the simultaneous detection of up to five gases. Combining advanced sensor technology with a rugged housing and high ingress protection, it is suitable for demanding industrial, energy, petrochemical and marine applications. A large backlit display provides a clear view of all measured gases, while audible, visual and vibrating alarms ensure immediate warning of hazardous conditions.

Simultaneous monitoring of up to five gases
Integrated NFC communication for device management and calibration
Compact dimensions and lightweight design
Rugged construction with IP65/IP68 ingress protection
Loud 95 dB audible alarm with visual and vibrating alerts
Large backlit display showing up to five gas readings simultaneously

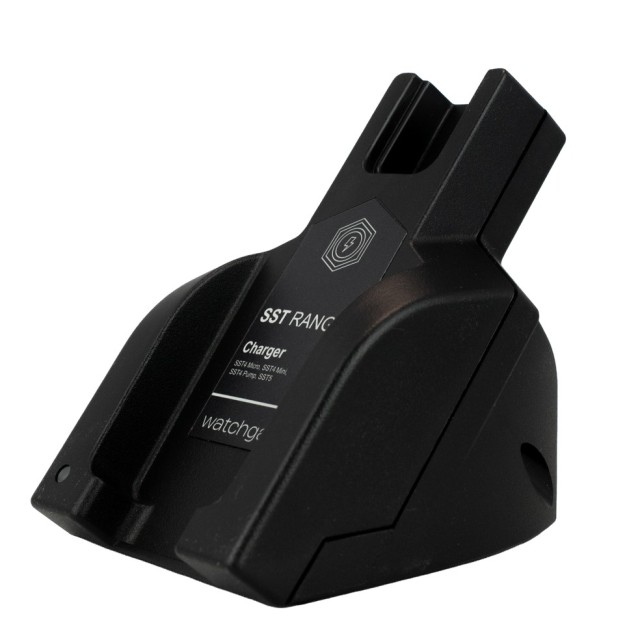

Inductive charging without exposed charging contacts
Event and data logging with WatchGas Device Link support

Technical specifications

Dimensions	107.9 × 62.4 × 26.1 mm
Weight	188 g
Operating temperature	–40°C to +60°C (depending on sensor type)
Humidity	5 to 95% RH, non-condensing
Battery runtime	48 hours (LEL LPC), up to 200 hours (LEL NDIR)
Charging time	2 to 3 hours
Ingress protection	IP65/IP68
Communication	NFC
Event log	100 events
Data logging	Up to 6 months
Calibration interval	6 months
Display	High-visibility backlit LCD
Alarm	95 dB audible, visual and vibrating
Approvals	ATEX, IECEx, UKEX and other international certifications
Instrument warranty	2 years
