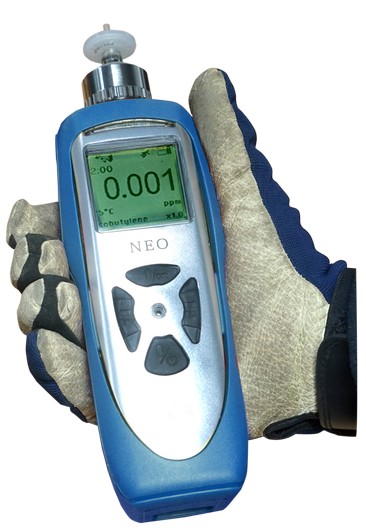

Watchgas NEO PPM (Blue Boot) 0,01 - 5,000 ppm VOC, PID detector,BLE (Bluetooth Low Energy)
Reference: M011-0004-W00
The WatchGas NEO is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb (parts per billion) detection. The NEO offers several models from the most sensitive 1 ppb to a high range up to 15,000 ppm for different applications, and a benzene-specific version (NEO BENZ).
Your price
on inquiry
In stock 1 ks
Product description
Product description
The WatchGas NEO is one of the most advanced handheld VOC (Volatile Organic Compound) monitors available for ppb (parts per billion) detection. The NEO offers several models from the most sensitive 1 ppb to a high range up to 15,000 ppm for different applications, and a benzene-specific version (NEO BENZ). Novel designs of the Photoionization Detector (PID) and Ultraviolet (UV) lamp provide outstanding sensitivity, stability and reproducibility. Options include real-time data monitoring with a built-in wireless modem using mPower Suite application software.
Key features
- Response time 3s
- Measurement range 1 ppb to 15 000 ppm (according to model)
- Most stable ppb-level PID on the market
- Smaller and lighter weight than comparable PIDs
- Outstanding linearity over full measurement range
- Large backlight graphic display
- USB Micro Charger; combination USB-m charging and communications cable
- Powerful battery (run time 24 hours)
- Bluetooth Low Energy (BLE) connectivity standard
- Rugged, stainless-steel housing with rubber outer boot
- Man-down alarm
Parameters
Parameters
| Brand: | Watchgas NEO |
| Category: | Measurement and control / Gas measurement / Portable detectors |
Technical specification
| Size | 230 mm x 74 mm x 55 mm |
| Weight | 708 g |
| Sensor | Photo-ionization sensor with standard 10.6 eV lamp (9.8 eV lamp) |
| Accuracy | ± 3% (at calibration point) |
| Baterry | Rechargeable Lithium-Ion battery |
| Run time | 24 hours typical operation |
| Display | 128 × 128 graphical LCD, 1.77 × 1.73 in (45 × 44 mm), with LED backlight for enhanced display readability |
| Keypad | 4 operation keys |
| Alarmy | Audible (95 dB @ 30 cm), visual (flashing bright red LEDs), and on-screen indication of alarm conditions plus wireless remote alarm notification |
| EMI/RFI | Compliant with EMC Directive 2014/30/EU |
| IP rating | IP-66 when turned on / IP-67 when turned off |
| Datalogging capacity | Standard 12 months at one-minute intervals Storage interval adjustable from 1 to 3,600 seconds |
| Correction Factors | Integrated Correction Factor list of more than 200 compounds |
| Calibration | Two/three-point calibration |
| Sampling pump | Built-in pump with 3 settings from 300 to 430 cc/min |
| Sampling | Sample from up to 100 ft (30 m) |
| Wireless data transfer | Integrated RF modem |
| Integrated BLE module | |
| Safety certification | ATEX II 1G Ex ia IIC T4 Ga |
| Temperature | –20° to +50° C |
| Humidity | 0% to 95% RH (non-condensing) |
Use
| Detector type | Jednokanálový |
| Sampling | Integrované čerpadlo |
| Gas detected | VOC |
| Certificate | ATEX |
| IP | 66 |
Operating conditions
| Detector power | Akumulátory |
| Data logging | Paměť pro ukládání dat |
