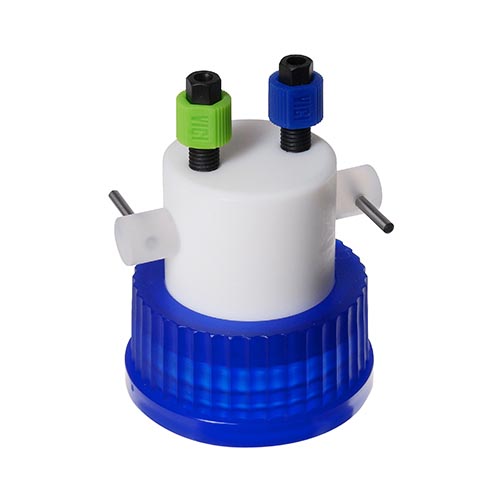

VICI-Safety-Cap GL45, 2 ports, with valves

Safety Caps – GL45 Threads

• Built-in stopcocks for easy interruption of solvent lines
• Fit all bottles or canisters with GL45 thread
• Prevent evaporation of volatile compounds
• 2, 3, and 4 ports available
• Stopcocks rated up to 72 psi gas at 25°C

GL45 safety caps seal to the bottle with an O-ring (EPDM) which is resistant to commonly used HPLC solvents. If improved chemical resistance is required (e.g. for halogenated hydrocarbons), order an FEP-coated O-ring separately. Unused ports can be closed with the stopcock. All ports can handle 1/8" or 1/16" OD tubing. A bottom-sealing barbed adapter to connect 1/8" (3.2 mm) ID tubing can be ordered separately.

Includes:

• 1 cap, GL45 thread, with stopcocks
• 1 O-ring, EPDM
• 1 set: 1/16" nut/ferrule/color-sleeve adapter
• 1, 2, or 3 sets: 1/8" nut/ferrule/color-sleeve adapter
• Additional nuts and ferrules for the bottom side connections
