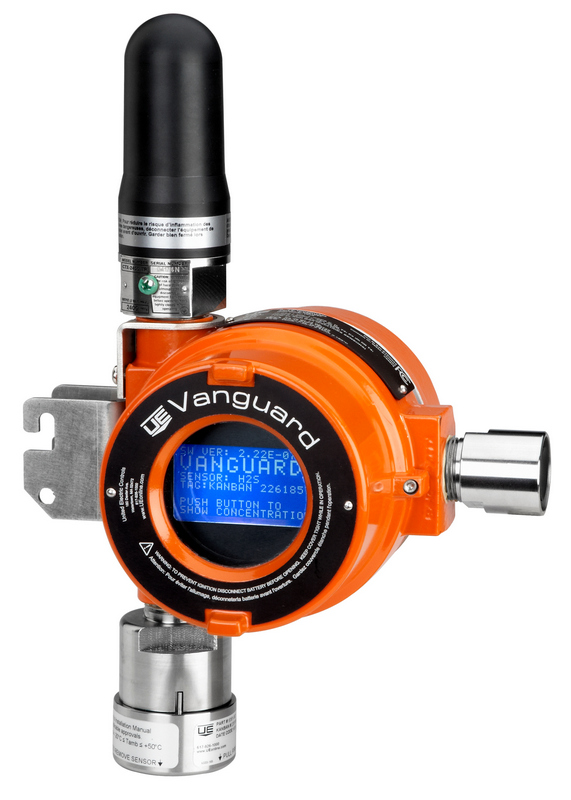

Vanguard WirelessHART detector, IR CH4 (Methane) 0-100% LEL, standard Flexmount
Reference: TCD50H1A03
The Vanguard WirelessHART® gas detector is ideal for the monitoring of toxic and combustible gases without the need for costly and fixed wiring. With a five year battery life and one button calibration, the Vanguard detector is easy to operate and maintain.
Your price
on inquiry
Availability: ask us
Product description
Product description
The Vanguard WirelessHART® gas detector is ideal for the monitoring of toxic and combustible gases without the need for costly and fixed wiring. With a five year battery life and one button calibration, the Vanguard detector is easy to operate and maintain.
Each Vanguard detector has a WirelessHART® transceiver, an antenna, a display, a long life power module, a gas sensor, and a signal processor for the gas sensor. Vanguard uses a sensor architecture trademarked “Flexsense,” which allows the sensor to identify its target gas and self-configure to a Vanguard transmitter upon connection.
Key features
- Wireless capability
- Field interchangeable toxic and combustible gas sensors
- Interoperable with existing WirelessHART® networks and asset management systems (AMS)
- Easy calibration and operation
- 5+ year battery life*
*Affected by polling frequency
Parameters
Parameters
| Brand: | Vanguard |
| Category: | Measurement and control / Gas measurement / Fixed detectors |
Technical specification
| Dimensions | 221 mm (W) x 315 mm (H) x 176 mm (D) |
| Weight | 4.35 kg |
| Process variables | 1 Hydrocarbon concentration in %LEL or Toxic gas concentration in ppm |
| 2 Temperature (°C); Not available for Hydrocarbon sensor | |
| 3 Days since calibration (days) | |
| 4 Battery voltage (volts) | |
| Temperature | –40°C to +65°C |
| Humidity | 0% to 98% (non-condensed) |
| Body material | Aluminum alloy (maximum copper content at 0.25%) with powder polyester paint; 316 stainless steel; nickel-plated brass; tempered glass |
| Ingress protection | Type 4X (enclosure only) |
| Display | Graphical LCD display, Viewable area is 2.25”W x1.25”H (57.2mm x 31.8mm) |
| Display language | English |
| Memory | Programming and data are protected by a non-volatile EEPROM |
| Antenna | 2.4 GHz, Hazardous Area Antenna |
| Mounting | FLEXmount™ Options |
| Communication Protocol | WirelessHART® HART 7.2, EDDL file available on demand |
| Batteries | Battery pack contains two Lithium battery cells |
| Operating Voltage | 7.2V |
| Life | 5 years based on an 8 second update rate |
| Programming Access | HART hand-held communicator, or via HART modem, connected to HART terminals located in rear battery compartment or via remote access (e.g., asset management software) DTM available for PC programming |
| Calibration/Bump Test Access | Via external button on transmitter base |
Use
| Gas detected | CH4 |
Operating conditions
| ATEX | ATEX |
| Digital output | WirelessHART |
| Detection/Operation principle | IR |
| Relays | Ne |
