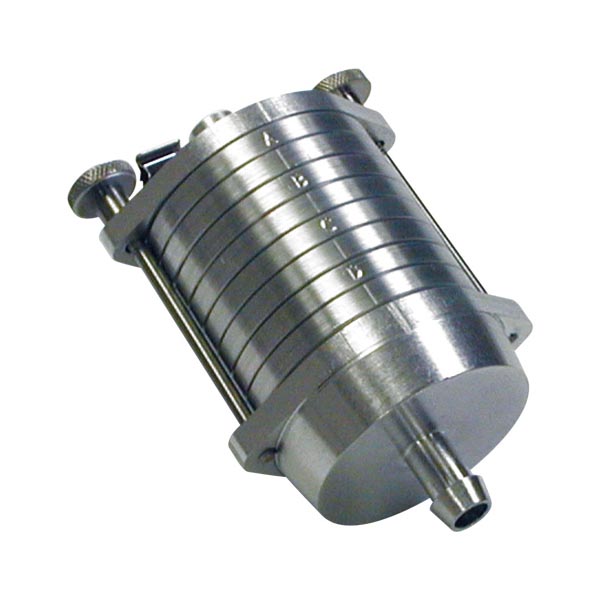

SIOUTAS Personal Cascade Impactor, optimized at 9 l/min

The patented† personal-size Sioutas* Cascade Impactor separates and collects airborne particles in five size ranges: > 2.5 µm, 1.0 to 2.5 µm, 0.50 to 1.0 µm, 0.25 to 0.50 µm, and < 0.25 µm.

Your price
on inquiry
Availability: ask us
Product description

Product description

The patented† personal-size Sioutas* Cascade Impactor separates and collects airborne particles in five size ranges: > 2.5 µm, 1.0 to 2.5 µm, 0.50 to 1.0 µm, 0.25 to 0.50 µm, and < 0.25 µm. When used with PTFE (Teflon) collection filters, the Sioutas Impactor is highly efficient at collecting particles without the use of impaction grease or substrate coatings and at retaining unstable compounds for size-fractionated chemical analysis.

The Sioutas Impactor and SKC Leland Legacy Sample Pump operated at 9 l/min are powerful partners that ensure precise particle separation at the specified cut-points and sample collection on the filters at each stage. The Sioutas Impactor is simply clipped to a worker's collar or lapel for personal sampling or attached at a sampling site for area sampling.

Parameters

Parameters

Brand: Sioutas Impactor
Category: Laboratory instruments and accessories / Air Sampling / Aerosol sampling heads

Performance profile

Flow rate 9 l/min
50% cut-point – stage A 2.5 µm
50% cut-point – stage B 1.0 µm
50% cut-point – stage C 0.50 µm
50% cut-point – stage D 0.25 µm
Recommended after-filter type 37-mm, 2.0-µm PTFE (Teflon) filter
Recommended impaction filter 25-mm, 0.5-µm PTFE (Teflon) with laminated PTFE support
Wind velocity <5 mph
Construction material: stages anodized aluminum
Construction material: ilter retainer acrylic
Dimensions 86 × 55 mm
Weight 159 g
