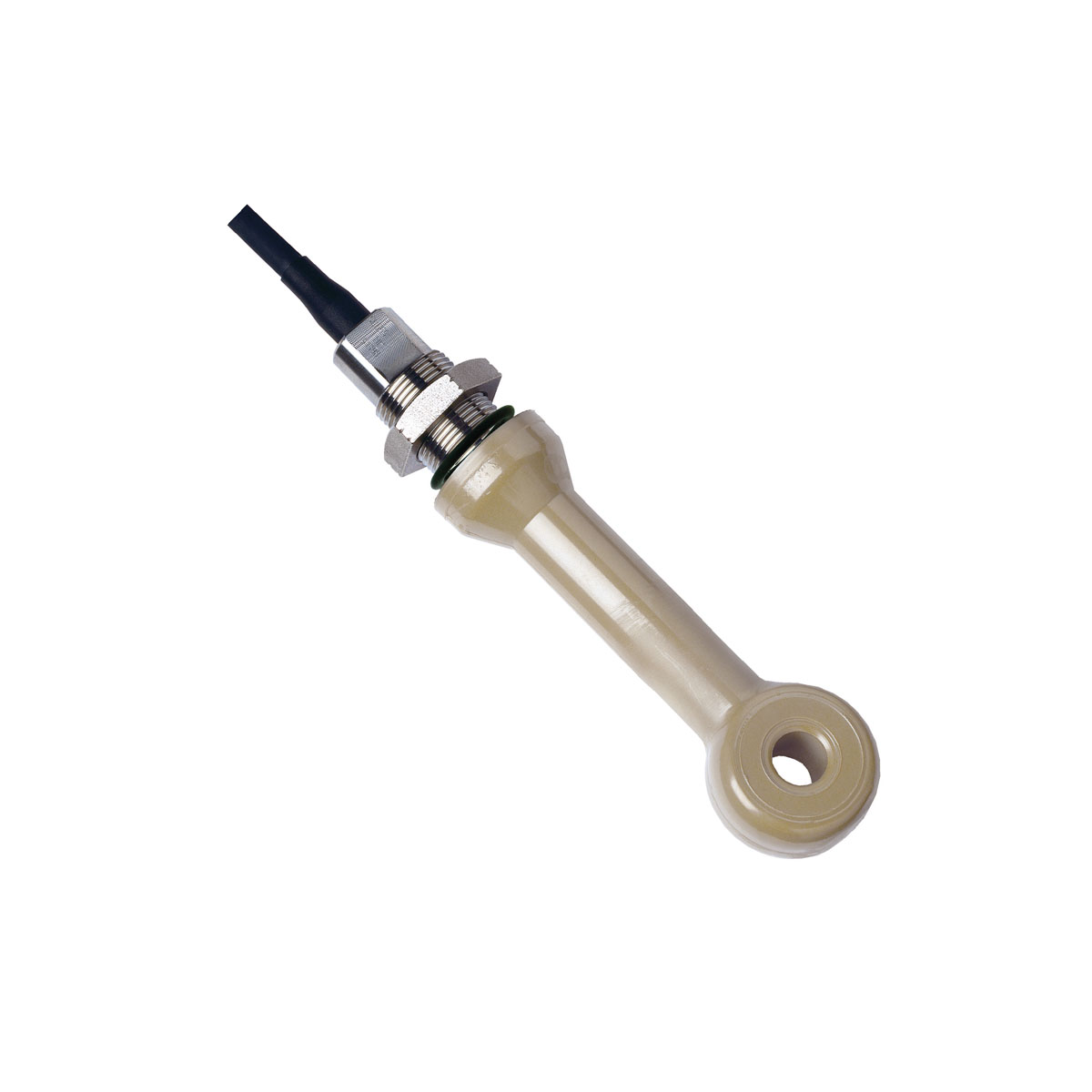

Conductivity sensor SE 655 toroidal sensor G 3/4"
Reference: SE 655
Toroidal Conductivity Sensor SE 655 Universal and precise sensor with high chemical resistance over a very large measuring range. For heavily polluted media.
Your price
on inquiry
Availability: ask us
Product description
Product description
Toroidal Conductivity Sensor SE 655
Universal and precise sensor with high chemical resistance over a very large measuring range. For heavily polluted media.
Facts and Features
- Robust design
- Extremely large measuring range due to inductive measuring principle
- Insensitive to contamination
- No process-wetted electrodes
- High chemical resistance (PEEK)
- Steam-sterilizable
- CIP-capable
Applications
- Concentration measurement of acid and alkaline solutions
- Heavily polluted media
- Coating-forming and oil-containing media
- Salt spring, heavily polluted wastewaters
- Cooling water blowdown
- Concentrate monitoring,
- Regeneration of ion exchangers
Parameters
Parameters
| Brand: | SE 655 |
| Category: | Measurement and control / Measurement of liquids / Sensors |
Dimensions
| Process connection | G 3/4" |
Use
| Phys. property | Conductivity |
| Maintenance | Maintenance free |
| ATEX | General use |
Material
| Temperature sensor | Pt100 |
Operating conditions
| Operating pressure | 0 - 20bar |
| Operating temperature | -20 - 125°C |
| Measuring range (COND) | 0,002...2000 mS/cm |
