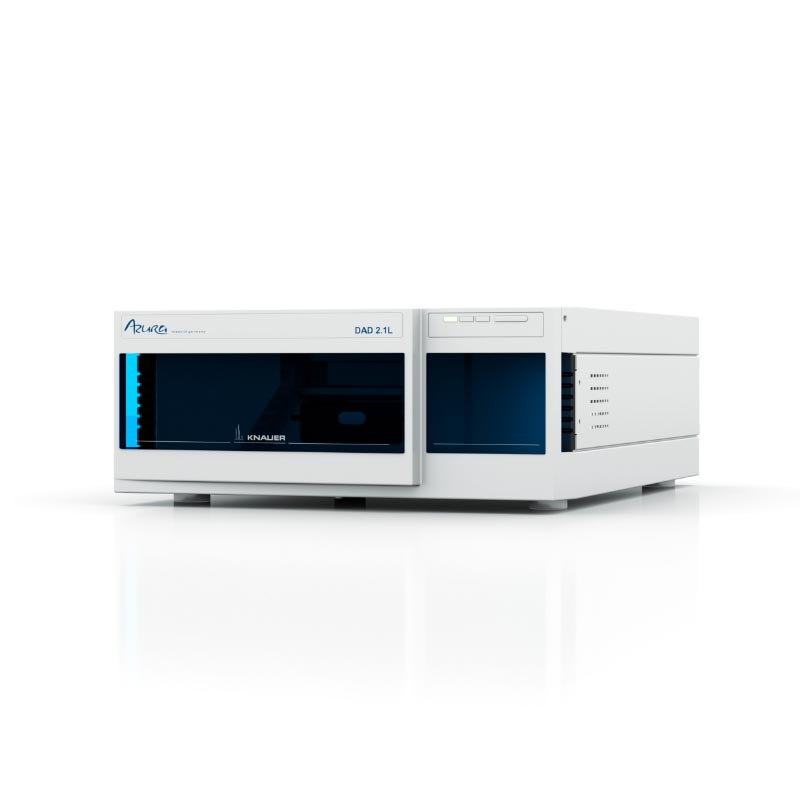

AZURA DAD 2.1L Diode array detector

The AZURA DAD 2.1L is an diode array detector, combining high performance with easy handling at an affordable price.

Your price
on inquiry
Availability: ask us
Product description

Product description

The AZURA DAD 2.1L is an diode array detector, combining high performance with easy handling at an affordable price.

A wide range of easily exchangeable cartridge flow cells make this device the right choice for fast, standard analytical, semi-preparative and preparative separations with bio-inert or stainless steel wetted parts. State-of-the-art total reflection flow cells, LightGuide technology, are available for this device providing maximum light throughput (due to total internal reflection) with minimal peak dispersion (due to the small cell volume) to guarantee an optimized S/N ratio.

An optional fiber optics adapter offers the possibility to separate the flow cell spatially from the device and thus provides enhanced security for hazardous, explosive or toxic work processes, as well as protecting the device from leakages at high flow rates. The newly developed optical unit and intelligent temperature management ensure for maximum sensitivity combined with minimal baseline drift.

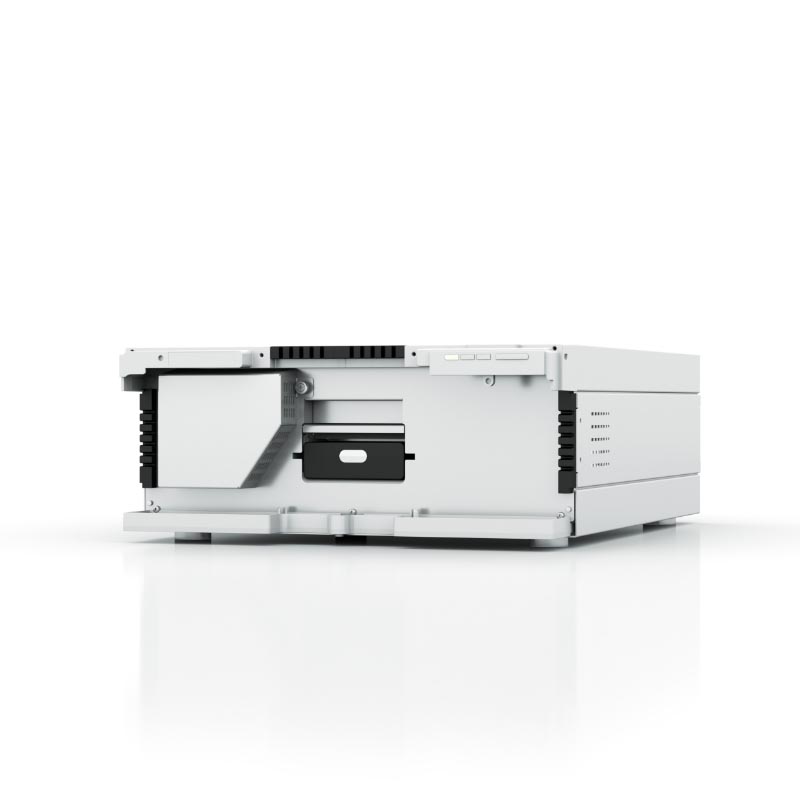

Furthermore, easy frontal access and improved safety features enable effortless lamp replacement. This eases maintenance and guarantees short downtimes.

This device is also easily upgradable to a diode array detector. The DAD 2.1L comes installed with a deuterium lamp which covers a wavelength range from 190 to 700 nm. This detector can be controlled with OpenLab® EZChrom, ClarityChrom® and PurityChrom Bio software, as well as from an optional touch display (stand-alone operation), via LAN or through analog input/output, allowing it to be integrated into almost any LC system.

Parameters

Parameters

Brand: Azura
Category: Laboratory instruments and accessories / Chromatography / Liquid chromatographs
Typ detektoru DAD (Diodové pole)
Počet diod 256
Rozteč bodů 2mm/diodu
Počet kanálů 8 (digitálních)
4 (analogové)
Zdroj světla deuteriová lampa (D2)s integrovaným GLP čipem
Rozsah vlnové délky 190 až 700nm
Spektrální šířka < 8 nm pro čáru Hα (FWHM)*
Správnost vlnové délky ±1nm
Přesnost vlnové délky 0.1nm
Šum ±5 µAU při 254nm
Drift 400 µAU/h při 254nm
Linearita >1.6 AU při 274nm
Rychlost sběru dat 100Hz (LAN)
12.5Hz (analogově)
Analogové výstupy 4× 0 až 5V, 16 bit
Provozní teplota 4 až 40°C
Provozní vlhkost <90% RH (nekondenzující)
Napájení 100 až 240V, 50 až 60Hz, 75W
Rozměry (Š x V x H) 361 × 158 × 523 mm
Hmotnost 12.2kg

*poznámka: digitální šířka 1 – 32 n
