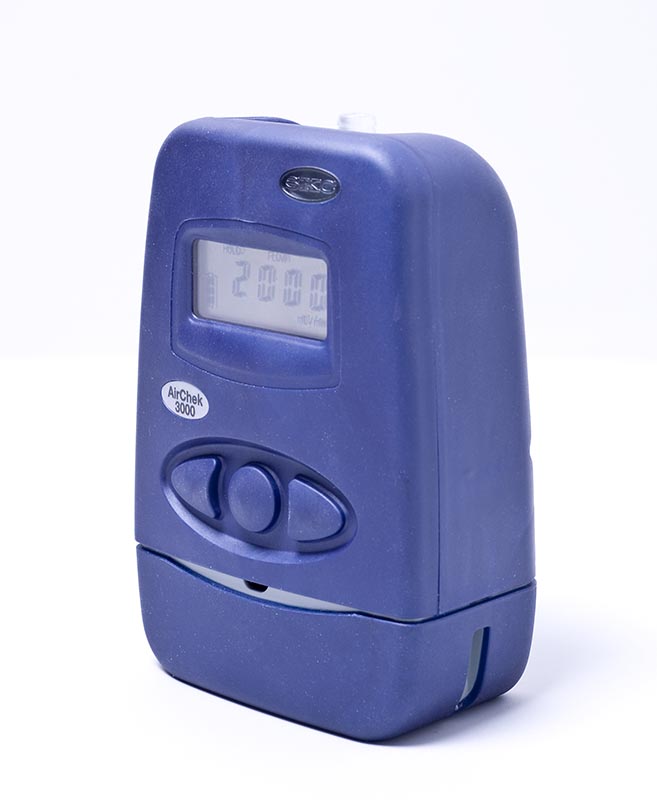

Airchek 3000 - sampling pump incl. NiMH batteries and charger, incl. carry case

The AirChek 3000 with a patented internal flow sensor brings advanced electronic flow to air sampling. This technology allows the user to program a desired flow rate via either the keypad or a PC using the optional DataTrac software.

Your price
on inquiry
Availability: ask us
Product description

Product description

The AirChek 3000 with a patented internal flow sensor brings advanced electronic flow to air sampling. This technology allows the user to program a desired flow rate via either the keypad or a PC using the optional DataTrac software.

Key Features

  • Continuous display of volume, flow, time, battery status, temperature, atmospheric pressure
  • Auto shut down on flow fault
  • Auto restart if fault is cleared
  • Programming via PC software or manually
  • 3 button keypad, no tool programming
  • Auto delayed start and timed shutdown
  • Interrupt ‘hold’ feature
  • Continuous run capability
  • Large LCD
  • Program from and report to PC with SKC DataTrac interface
  • Precision timing
  • Real time clock
  • Flow control: ±5 % of set point constant flow
  • Charging time: Up to 3 hours using 223–240A single fast charger, 16 hours using 223–109A five station charger

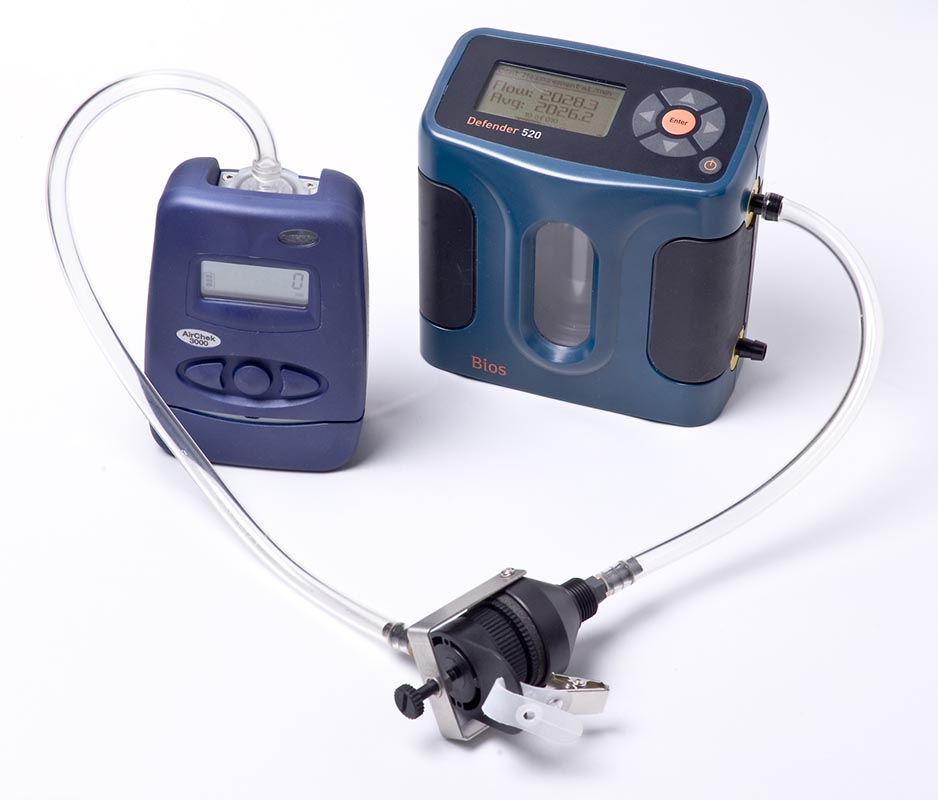

Calibration Technology

CalChek offers a total calibration system for the AirChek 3000. Automatically calibrate your pump to a single flow rate or perform verification across the full flow range. Ideal for verifying performance. DataTrac users can document the calibration and print or save the data to a PC – ideal for ISO9000, Total Quality Management (TQM) and COSHH management systems.

DataTrac

Program or operate your pump with our custom designed DataTrac software package which is compatible with the AirChek 3000. Program complex run-sequences including delayed start, timed stop and intermittent sampling at different flow rates and then transfer the details into the pump memory. After sampling, retrieve the run time data to ensure sampling has been carried out as scheduled. For chain of custody reporting, create a unique worker, location and sample profile to print/store on your PC.

Technical parameters
Flow range (constant flow operation) 1000 – 3250 ml/min
Flow range (constant pressure operation) 5 – 500 ml/min with adapter
Flow control ±5 % of set point constant flow
Battery pack NiMH rechargeable, 2.0 Ah, 4.8 V
Operating temperature 0°C to +40°C (limited by Intrinsic Safety Certification)
Weight 580g
Protection IP64 (dust and rain proof)
Approvals CE Marked, ATEX and IECEx certified
Key Accessories
Description Part No.

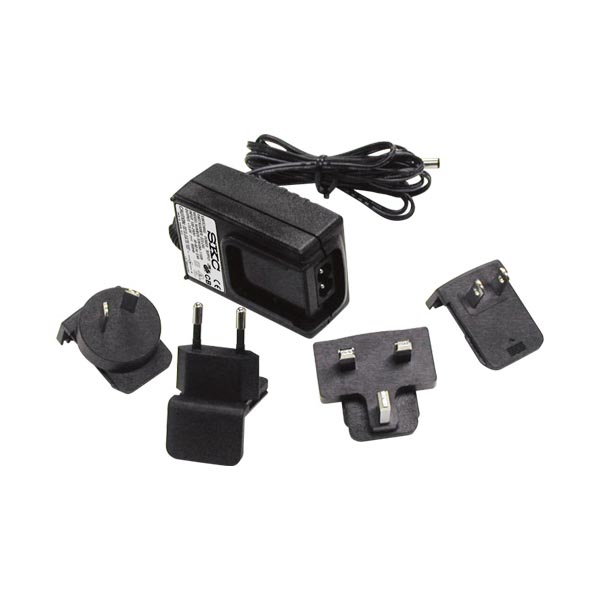

Single fast charger 100–240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs 223–240A
Five station battery charger 100–240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs 223–109A
Battery eliminator 230V ~ 50Hz supply with EU 2 pin mains plug 223–330B
Protective pouch in black 224–88
High visibility protective pouch in red 224–96A
Parameters

Parameters

Brand: AirChek 3000
Category: Laboratory instruments and accessories / Air Sampling / Sampling pumps

Operating conditions

ATEXATEX
Pump Maximum Flowrate3250ml/min
Pressure compensationano
Programmingano
ST samplings CPC adaptérem
